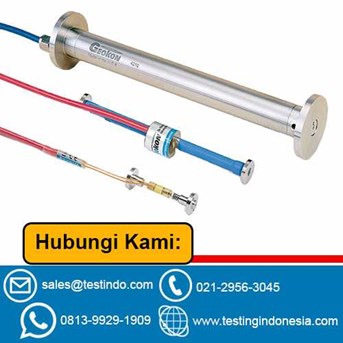

Concrete Embedment (VW) | Model 4200 · 4202 · 4210

These Strain Gages are designed for direct embedment in concrete. The 4200 (standard model) has a 153 mm gage length and 1 με sensitivity and is commonly used for strain measurements in foundations, piles, bridges, dams, tunnel linings, etc. The 4210 has a 250 mm gage length making it particularly suitable for use in large aggregate concrete. The 4202 is designed for laboratory use and/or where there are space limitations. Low modulus versions, for measuring concrete curing strains, are also available

• Standard Range¹ : 4200, 4202, 4210 | 3,000 µε
•                                4200ER | up to 10,000 µε
• Resolution : 4200 | 1.0 µε
•                     4200ER | 2.0-5.0 µε
•                     4202, 4210 | 0.4 µε
• Accuracy² : 4200, 4202, 4210 | ±0.5% F.S.³
•                    4200ER | ±0.5% F.S.
• Nonlinearity : 4200, 4202, 4210 | <0.5% F.S.
•                        4200ER | ±2.5-4.0% F.S.
• Temperature Range¹ : −20°C to +80°C
• Active Gage Length : 4200, 4200ER | 153 mm
•                                     4202 | 51 mm
•                                     4210 | 250 mm⁴

Testindo merupakan sistem integrator, distributor, service & solution provider untuk produk dan jasa terkait Testing, Measurement, instrumentasi monitoring geoteknik, instrumentasi monitoring bendungan, instrumentasi pemantauan proses penggalian excavation tambang, instrumentasi monitoring terowongan, instrumentasi monitoring proses penggalian, instrumentasi monitoring proses pengurukan tanah, instrumentasi monitoring landfill, instrumentasi monitoring tanggul, instrumentasi tambang, instrumentasi slope stability, instrumentasi pemantauan lereng.

Alat Uji Geoteknik mensupply barang geoteknik berikut:
Strain gages, rebar strainmeters, crackmeters, jointmeters, straindmeters, convergence meters, deformation meters, soil extensometers, piezometers, anchors, readout instruments, displacement meters, pressure transducer, weir monitors, settlement system, settlement profilers sensors, downhole water level dataloggers, weir monitor, borehole pressure cells, borehole deformation gages, pressure cells, shotcrete stress cells, pile tip pressure cells, deAerators, temperature gauges, load cells, concrete stress cells, b/h deformation gages, stressmeters, digital inclinometer system, Inclinometer Probes, In-place inclinometers, Inclinometer casing, tiltmeters, tilt beams, pendulum system, multiplexer, readouts, MEMS datalogger, Wireless Datalogger, Wireless Vibrating Wire interface, software, fiber optic strain gages, fiber optic temperature sensors, fiber optic rebar strainmeters, concrete dams, earth dams, deep excavation monitoring, tunnelling, pile testing, Foundation and deep excavations, Geogrids, Landfills, Bridge, Dams, Embankments, Mines, Slope Stability, Tunnels, Wind Turbines, Nuclear waste repositories, piles and piles testing, pipelines. Geokon, Soil Instrument Geotechnical, RST Instrument, Roctest , Slope indicator, Geosense, Soil investigation, Geotech.
