Digital Inclinometer System (MEMS) | Model GK-604D

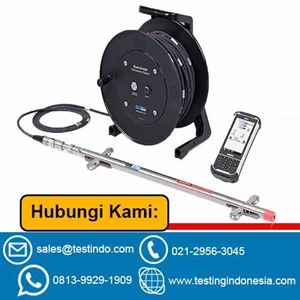

The Model GK-604D Digital Inclinometer System is delivered in its entirety and includes a Model 6100D Digital Inclinometer Probe, a reel-mounted cable and a Field PC. The Model 6100D contains electronics to convert the analog voltage into a digital signal, which is transmitted by the control cable to the cable reel containing the Interface, which communicates via Bluetooth® to the Model FPC-2 Field PC. A Digital Compass is built into the Inclinometer Probe to correct the inclinometer data sets for any twist (or spiraling) in the inclinometer casings. The spiral survey data is presented on (and stored in) the same FPC-2 Field PC used for taking inclinometer readings.

• Standard Range : ±30°
• Resolution (Probe) : 0.0013°
• Resolution (System)¹ : ±0.025 mm/500 mm (±0.0001 ft/2 ft)
• Total System Accuracy² : ±3 mm/30 m (±0.125 in/100 ft)
• Temperature Range : 0°C to +50°C
• Length × Diameter³ : Length × Diameter³
• Wheel Base : 0.5 m, 1 m or 2 ft
• Casing Size I.D. : 51 to 89 mm (2 to 3.5 in)

Testindo merupakan sistem integrator, distributor, service & solution provider untuk produk dan jasa terkait Testing, Measurement, instrumentasi monitoring geoteknik, instrumentasi monitoring bendungan, instrumentasi pemantauan proses penggalian excavation tambang, instrumentasi monitoring terowongan, instrumentasi monitoring proses penggalian, instrumentasi monitoring proses pengurukan tanah, instrumentasi monitoring landfill, instrumentasi monitoring tanggul, instrumentasi tambang, instrumentasi slope stability, instrumentasi pemantauan lereng.

Alat Uji Geoteknik mensupply barang geoteknik berikut:

Strain gages, rebar strainmeters, crackmeters, jointmeters, straindmeters, convergence meters, deformation meters, soil extensometers, piezometers, anchors, readout instruments, displacement meters, pressure transducer, weir monitors, settlement system, settlement profilers sensors, downhole water level dataloggers, weir monitor, borehole pressure cells, borehole deformation gages, pressure cells, shotcrete stress cells, pile tip pressure cells, deAerators, temperature gauges, load cells, concrete stress cells, b/h deformation gages, stressmeters, digital inclinometer system, Inclinometer Probes, In-place inclinometers, Inclinometer casing, tiltmeters, tilt beams, pendulum system, multiplexer, readouts, MEMS datalogger, Wireless Datalogger, Wireless Vibrating Wire interface, software, fiber optic strain gages, fiber optic temperature sensors, fiber optic rebar strainmeters, concrete dams, earth dams, deep excavation monitoring, tunnelling, pile testing, Foundation and deep excavations, Geogrids, Landfills, Bridge, Dams, Embankments, Mines, Slope Stability, Tunnels, Wind Turbines, Nuclear waste repositories, piles and piles testing, pipelines. Geokon, Soil Instrument Geotechnical, RST Instrument, Roctest , Slope indicator, Geosense, Soil investigation, Geotech.

Berminat Segera Hubungi Kami Di Kontak Berikut Ini

Alamat: Jl.Radin Inten II No 61 B Duren Sawit Jakarta Timur
Phone: 021-2956-3045
Mobile: 0813 9929 1909, 0815 614 1954
Email: [email protected]
Website: www.testingindonesia.com
